Flang Type Multi-Axis Force Sensor 5kN 10kN 20kN 30kN 50kN 100kN
Triaxial Load Cell

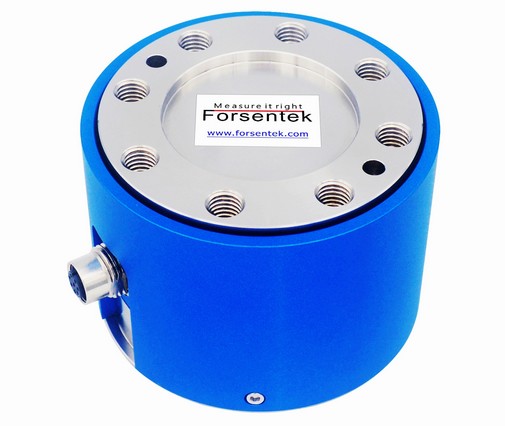

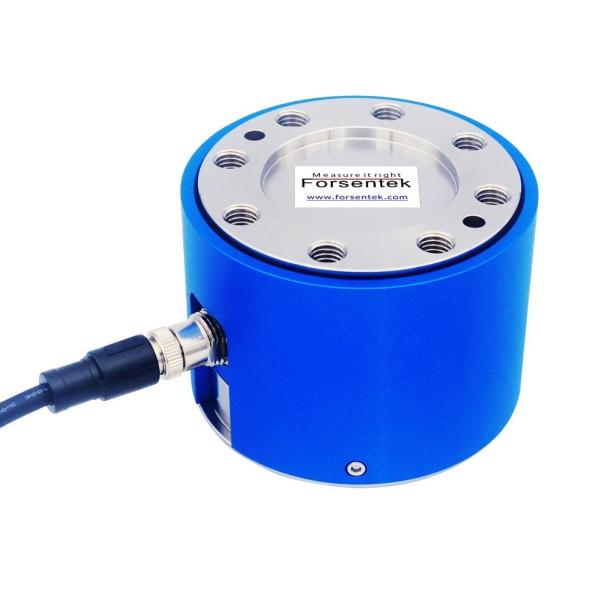

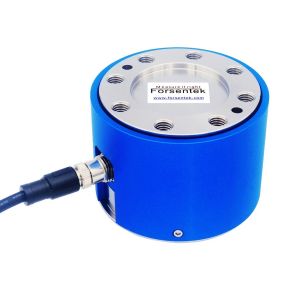

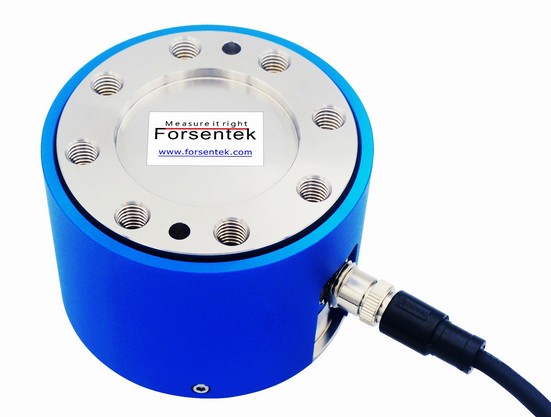

The F3S 3-axis force sensor is a high-performance,
multi-directional load cell engineered with advanced strain gauge
technology. It is capable of capturing force inputs concurrently
across the X, Y, and Z axes. Featuring a durable flange-to-flange
design, the sensor offers strong mechanical stability and secure
integration into various setups. This makes it a dependable choice
for both demanding industrial scenarios and precision-driven
research applications. Its availability in multiple sizes and force
capacities allows the F3S to adapt seamlessly to a range of testing
needs—from lightweight component evaluations to rigorous structural
assessments.
One of the key advantages of the F3S triaxial force sensor lies in
its capacity configuration. The X and Y directions support
measurements between 5kN and 100kN, while the Z axis is optimized
for significantly heavier loads, with a range of 15kN to 300kN.
This configuration makes the sensor especially effective for use
cases where vertical loading plays a dominant role, including
structural load validation, press-fit operations, and impact
testing. Designed for consistency, it excels in both static and
dynamic force monitoring. With minimized signal distortion and low
cross-axis interference, the F3S ensures high accuracy and
repeatability across all channels, making it a trusted tool in
aerospace testing, medical biomechanics, fatigue studies, and
automated quality assurance.
Beyond its precision and resilience, the F3S 3D load cell is engineered for configurability. Users can tailor the unit with
application-specific mounting patterns, custom axis load ratios,
and output signals—ranging from standard millivolt levels to analog
or digital protocols like 0–10V, 4–20mA, RS232, or RS485.
Constructed from robust materials and tested for long-term
reliability, the F3S is a versatile asset for professionals who
need dependable, multidirectional force data in complex
environments. Its blend of customizability, measurement fidelity,
and mechanical strength makes it an essential component in advanced
force sensing systems.
Ordering code of 3-component load cell F3S
Ordering code | Capacity |
| Fx=Fy | Fz |
| F3S-5k-5k-15k | 5kN | 15kN |
| F3S-10k-10k-30k | 10kN | 30kN |
| F3S-20k-20k-60k | 20kN | 60kN |
| F3S-30k-30k-90k | 30kN | 90kN |
| F3S-40k-40k-120k | 40kN | 120kN |
| F3S-50k-50k-150k | 50kN | 150kN |
| F3S-100k-100k-300k | 100kN | 300kN |
Specifications
| Rated Capacity | Refer to ordering code |
| Sensitivity | Fx/Fy: 1.2~1.7 mV/V Fz: 0.6~1.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% of the capacity |
| Hysteresis | ±0.3% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(5min) | ±0.1% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.02% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 145±20Ω |
| Output resistance | Fx/Fy:350±30Ω Fz:700±50Ω |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 (Optional IP65) |
| Material of element | Stainless steel |
| Cable | Ø6x5000mm 8-core shielded cable |
