Subminiature compression force sensor 500N 300N 200N 100N 50N button load cell

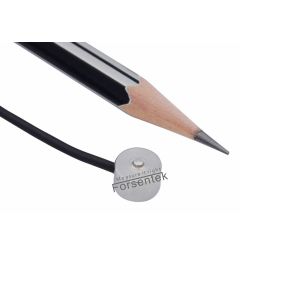

Subminiature button load cell FC8E is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement.Miniature load cell FC8E offers 50N / 100N / 200N / 300N / 500N five measuring ranges to choose from.Small size button load cell FC8E is featured with only 8mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for transducer FC8E are such as clamping force measuremen,force overload protection,load distribution analysis,pressing die force measurement,auto equipment,assembly line and so on.

Dimensions(unit in milimeter)

Specifications

Subminiature compression load cell 500N 300N 200N 100N 50N button load cell

Click here to download datasheet

Located in China,Forsentek Co., Limited has provided load cells,force sensors and measuring solutions to more than 30 countries all over the world.

At Forsentek,you can find universal products like:

• Compression load cell
• Force sensor force transducer
• Button load cell
• Micro load cell
• Strain gauge load cell
• Reaction torque sensor
• Rotary torque sensor

Forsentek is also an expert in customized force measurement products like:

Load pins for overload protection.

Bolt sensor for fastening force monitoring.

With experienced engineers in load cell and force sensor application field,Forsentek knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manafuacturing technology and custom-made service,we are confident in providing the most suiablt products to meet your application perfectly.

Send us an inquiry,we'll get back with solutions.
